Move Water MUCH Higher with NO Electrical Energy
Discover Joseph-Michel Montgolfier's ingenious 1796 invention that uses water hammer principles to pump water to heights much greater than the source - all without electricity!
Water Hammer Physics
Harness the power of water hammer effect - the sudden pressure surge created when flowing water is forced to stop abruptly.
Self-Powered Operation
Uses only the energy of flowing water to operate continuously, 24/7, with no external power source required.
Sustainable Water Access
Perfect for remote locations where electricity is unavailable, providing reliable water pumping for communities and agriculture.

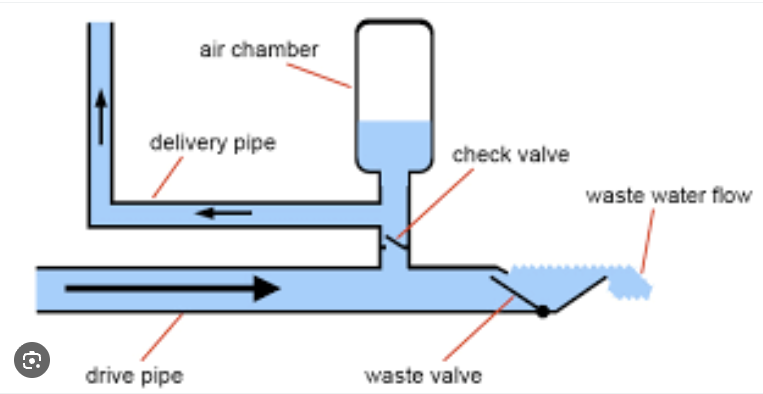

How Ram Pumps Work
1. Water Flow Begins
Water flows from a higher source through the drive pipe, accelerating as it moves toward the ram pump chamber.
2. Valve Closure
The waste valve automatically closes when water reaches sufficient velocity, creating a sudden stop in flow.
3. Pressure Surge
Water hammer effect creates a high-pressure surge that forces water through the delivery valve into the pressure chamber.
4. Delivery Stroke
Compressed air in the pressure chamber pushes water up the delivery pipe to heights much greater than the source.
5. Cycle Repeats
The waste valve reopens, flow resumes, and the entire cycle repeats automatically, typically 30-100 times per minute.
The Physics Behind It
Conservation of Energy: The ram pump trades large volumes of water at low lift for smaller volumes at high lift.
Efficiency: Typically achieves 60-80% efficiency, with some water "wasted" to power the pumping action.
Lift Ratios: Can pump water 7-10 times higher than the driving head with proper design.
Technical Deep Dive
How to Determine the Efficiency of a Ram Pump
To test the efficiency of a ram pump, you need to compare the potential energy output to the potential energy input.
Potential Energy Output:
This is the useful work done by the pump. You can determine it by measuring the volume of water that reaches the final destination and the height it's lifted to.
Potential Energy Input:
This is the energy consumed by the pump. You can calculate it by measuring the volume of water flowing from the reservoir into the pump and the vertical height of the reservoir above the pump.
Essentially, the efficiency is the ratio of the energy you get out to the energy you put in, often expressed as a percentage. The formula is:
Efficiency = (Energy Output / Energy Input) × 100%
How Does A Ram Pump Fail?
Understanding how ram pumps fail helps you design better systems and troubleshoot problems. Here are the main failure modes to experiment with:
🔧 Lift the Water Source Higher
Try raising the input water source. As the vertical distance between source and pump increases, flow rates decrease and the pump may stop working entirely due to insufficient driving head.
📈 Raise the Delivery Outlet
Gradually increase the delivery height. Ram pumps have maximum lift limits - push beyond this and water won't reach the destination despite the pump still operating.
💧 Create a Low Point in Delivery Tube
Introduce a sag or dip in the delivery pipe. This creates air pockets and breaks the siphon effect, preventing water from reaching the final destination.
🚰 Other Failure Modes to Test:
- Insufficient drive pipe length: Too short = poor water hammer effect
- Wrong valve timing: Valves that open/close at wrong intervals
- Air leaks: Loose connections disrupting pressure cycles
- Clogged valves: Debris preventing proper valve operation
- Undersized air chamber: Insufficient pressure storage
- Flow rate too low: Source doesn't provide minimum required flow
💡 Learning Tip: Each failure mode teaches you about the physics principles that make ram pumps work. Try inducing these failures systematically to understand the limits!
Real-World Applications
Rural Water Supply
Providing clean water access to remote communities without electrical infrastructure.
Agricultural Irrigation
Sustainable irrigation for hillside farms and terraced agriculture systems.
Livestock Watering
Automated watering systems for pastures and grazing areas on slopes.
Emergency Situations
Reliable water pumping during power outages or in disaster-affected areas.
